Panel Mounted Disconnect switches
Details

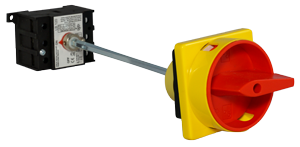

A range of through the door 3 pole disconnect switches from 20 amps through to 125 amps. All of the switches are supplied with a door interlocked steel shaft suitable for mounting into enclosures up to 16 inches deep, the handle has the provision to use up to 3 pad locks to secure it in the OFF position. The switch has the option of adding two extra modules (main pole, late break, early make (neutral) or auxilliary contact (1NO and 1NC). Each switch is supplied with incoming clear shroud for IP20 "fingerproof" protection.
20 AMP Panel Mount Disconnects
Part Number |
Sku Code |
Description |
Technical Data sheet |
Drawing |
G203RD |
8518 |
3 Pole Panel Mount Disconnect 20AMP RD Style Handle |
- |
- |
GMP20 |
8528 |
20 AMP Main Pole (Add-on) |
- |
- |
GNP20 |
8532 |
20 AMP Neutral (Add-on) |
- |
- |
GAP20 |
8536 |
1 N/O + 1 N/C Aux (Add-on) |
- |
- |
32 AMP Panel Mount Disconnects
Part Number |
Sku Code |
Description |
Technical Data sheet |
Drawing |
G323RD |
8519 |
3 Pole Panel Mount Disconnect 32AMP RD Style Handle |
- |
- |
G323SH |
8524 |
3 Pole Panel Mount Disconnect 32AMP Small Pistol Grip Handle |
- |
- |
GMP32 |
8529 |
32 AMP Main Pole (Add-on) |
- |
- |
GNP32 |
8533 |
32 AMP Neutral (Add-on) |
- |
- |
GAP32 |
8537 |
1 N/O + 1 N/C Aux (Add-on) |
- |
- |
63 AMP Panel Mount Disconnects
Part Number |
Sku Code |
Description |
Technical Data sheet |
Drawing |
G633RD |
8520 |
3 Pole Panel Mount Disconnect 63AMP RD Style Handle |
- |
- |
G633SH |
8525 |
3 Pole Panel Mount Disconnect 63AMP Small Pistol Grip Handle |
- |
- |
GMP63 |
8530 |
63 AMP Main Pole (Add-on) |
- |
- |
GNP63 |
8534 |
63 AMP Neutral (Add-on) |
- |
- |
GAP63 |
8538 |
1 N/O + 1 N/C Aux (Add-on) |
- |
- |
100-125 AMP Panel Mount Disconnects
Part Number |
Sku Code |
Description |
Technical Data sheet |
Drawing |
G1003RD |
8521 |
3 Pole Panel Mount Disconnect 100AMP RD Style Handle |
- |
- |
G1253RD |
8522 |
3 Pole Panel Mount Disconnect 125AMP RD Style Handle |
- |
- |
G1003SH |
8526 |
3 Pole Panel Mount Disconnect 100AMP Large Pistol Grip Handle |
- |
- |
G1253SH |
8527 |
3 Pole Panel Mount Disconnect 125AMP Large Pistol Grip Handle |
- |
- |
GMP125 |
8531 |
100/125 AMP Main Pole (Add-on) |
- |
- |
GNP125 |
8535 |
100/125 Neutral (Add-on) |
- |
- |
GAP125 |
8539 |
1 N/O + 1 N/C Aux (Add-on) |
- |
- |
