Enclosures

Details

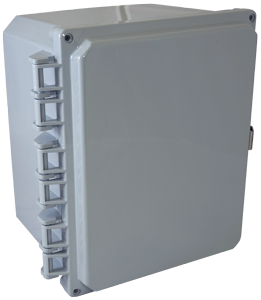

The GEIP range of enclosures are manufactured in the USA. The thermoplastic electrical enclosures are designed for use in electrical construction, water treatment, wireless, solar, car wash, telecommunication, instrumentation, utility, machine building, HVAC, or any other application requiring enclosures, which are non-corrosive, non-conductive, easy to install and modify, and competitively priced.
- Polycarbonate enclosures can withstand over 900 pounds of impact, more than four times the impact resistance of fiberglass enclosures.
- Polycarbonate doesn’t deteriorate when mounted outdoors.
- Easily Modified without the need for breathing masks.
- All GEIP polycarbonate enclosures are NEMA 4X rated, which means that these enclosures are watertight and can withstand direct salt water spray.
- Polycarbonate enclosures also have a cleaner look than fiberglass
Specifications
Part Number Sku Code Description Size H x W x D(in)
H6064HLL 8863 Opaque Lid 6 x 6 x 4
H6064HCLL 8864 Clear Lid 6 x 6 x 4
ABP66 8879 Aluminum Back Panel 6 x 6
H8084HLL 8865 Opaque Lid 8 x 8 x 4
H8084HCLL 8866 Clear Lid 8 x 8 x 4
ABP88 8880 Aluminum Back Panel 8 x 8
H10084HLL 8867 Opaque Lid 10 x 8 x 4
H10084HCLL 8868 Clear Lid 10 x 8 x 4
H10086HLL 8869 Opaque Lid 10 x 8 x 6
H10086HCLL 8870 Clear Lid 10 x 8 x 6
ABP108 8881 Aluminum Back Panel 10 x 8
H12106HLL 8871 Opaque Lid 12 x 10 x 6
H12106HCLL 8872 Clear Lid 12 x 10 x 6
ABP1210 8882 Aluminum Back Panel 12 x 10
H141206HLL 8873 Opaque Lid 14 x 12 x 6
H141206HCLL 8874 Clear Lid 14 x 12 x 6
ABP1412 8883 Aluminum Back Panel 14 x 12
ABP-1412SP/SOPK 8886 Aluminum Swing Panel Kit 14 x 12
H161407HLL 8875 Opaque Lid 16 x 14 x 7
H161407HCLL 8876 Clear Lid 16 x 14 x 7
ABP1614 8884 Aluminum Back Panel 16 x 14
ABP-1614SP/SOPK 8887 Aluminum Swing Panel Kit 16 x 14
H181610HLL 8877 Opaque Lid 18 x 16 x 10
H181610HCLL 8878 Clear Lid 18 x 16 x 10
ABP1816 8885 Aluminum Back Panel 18 x 16
ABP-1816SP/SOPK 8888 Aluminum Swing Panel Kit 18 x 16
G242410-P560 8892 Opaque Lid 24 x 24 x 10
ABP2424 8893 Aluminum Back Panel 24 x 24
ABP2424 GSOPK 8894 Aluminum Swing Panel Kit 24 x 24
GSR2424 8895 Stiffener Ring 24 x 24
Vent2 8889 NM Vent Kit -
FS Kit-2 8890 Fan Shroud Kit -
BPAKG 8891 Back Panel Height Adjustment Kit -
Approvals
cULus CSA CE RoHs VDE
